NEW VAUXHALL OPCom Can HW1.70 Flash Programming INJECTOR, PUMP CODING, PINCODE, MILEAGE
NEW OP-Com Can OBD2 WITH FLASH Programming for Vauxhall & Opel Firmware V1.70
with Super Easy install 08/10 & 14/02 Softwares.
China clone with PIC18F458 chip interface.
Opcom 2014.02 Can OBD2 for Opel Firmware V1.60 with PIC18F458 Chip
SEE MILEAGE CORRECTION VIDEO https://youtu.be/VC8sVYo4BoY
1. OPCOM is a special PC Based diagnostic interface especially for VAUXHALL/OPEL.
2. Software Version: 2014.02
3. Never Update It Online, it is a clone so It Will Damage The OP-COM interface!
1. It covers almost for all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.
2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.
3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.
4. Since for Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.
PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)

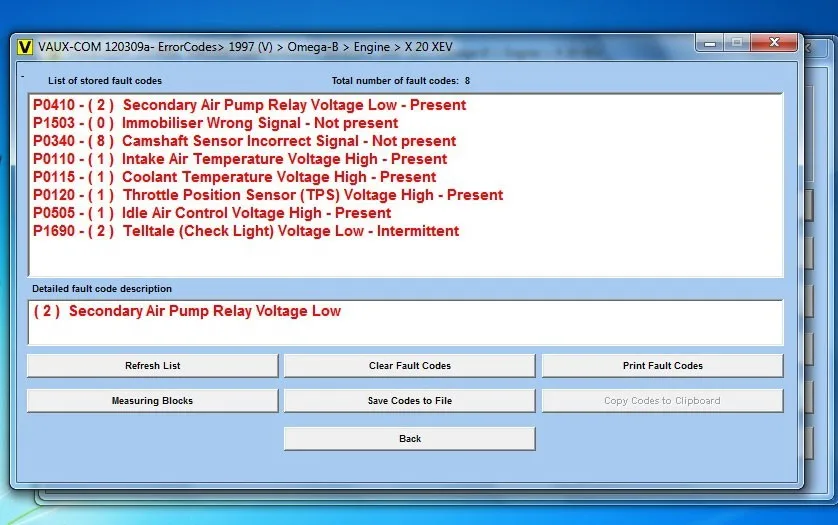

5. Fault codes will be shown with all available information:
Full Fault Code Text Description:
1) Full status information (Present, Not present, Intermittent)
2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.
3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.
4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or for Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!
You can also run output tests on many controllers.
HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps
MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps
1pc x OP COM Interface
1pc x USB Cable
1pc x Software and Drivers CD
Same spec as what the dealers use at a silly low price.....
