The vehicle protocols are handled directly in the VAS 5054 PLUS
This ensures fast response times and a reliable real-time behavior independently of the PC operating system.
Every time a connection is established, the VAS 5054 PLUS software is identified with the version installed on the application PC.
The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS 5054 PLUS via Bluetooth or USB.
Access Via Bluetooth: After a connection to the VAS 5054 PLUS has been set up,
the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile).
The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application
Access Via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable.
Windows detects the VAS 5054 PLUS through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application.
Setup of the VAS 5054 PLUS is then complete and the device is ready for use by the diagnostic application.
The Following Vehicle Bus Systems are Supported:
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)

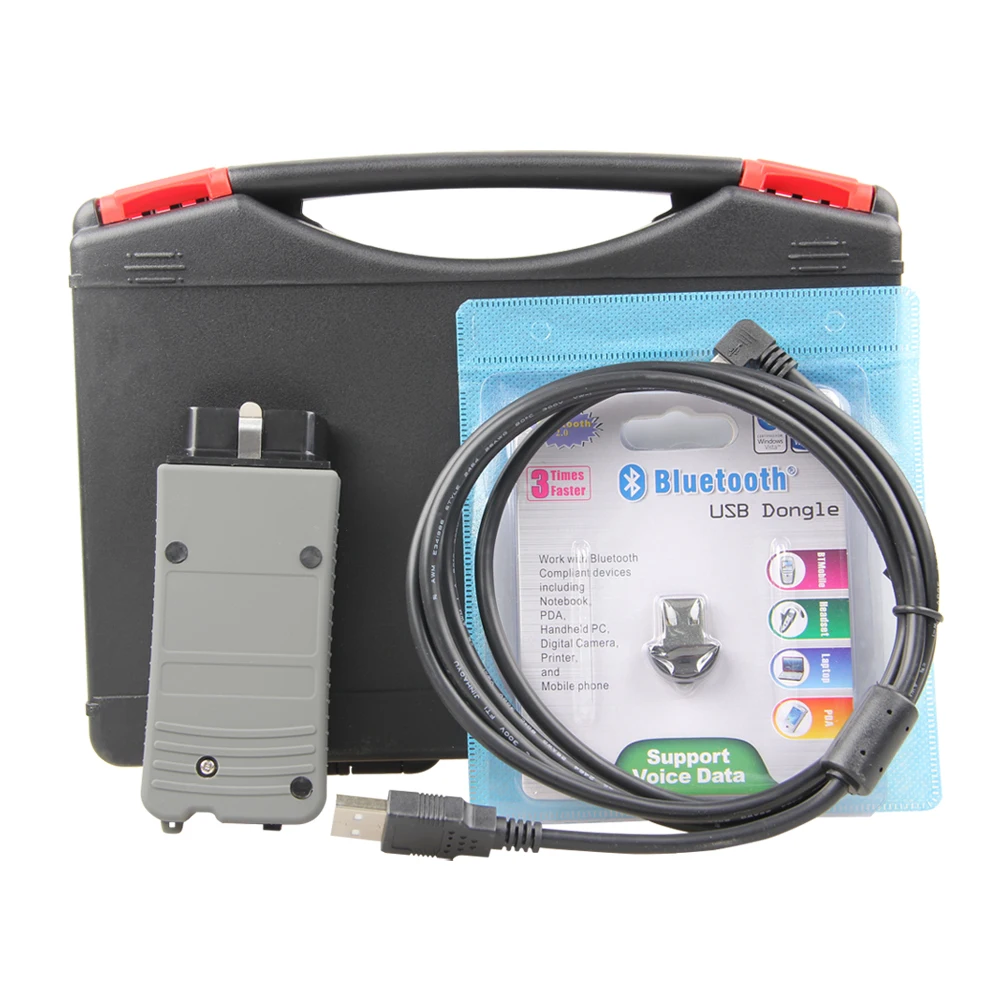

Packing list :
VAS 5054 PLUS Main Unit
USB Cable (3 meter)
ODIS 3.02 Software
